## Draw the power flow diagram showing voltages, Electrical Engineering

Assignment Help:

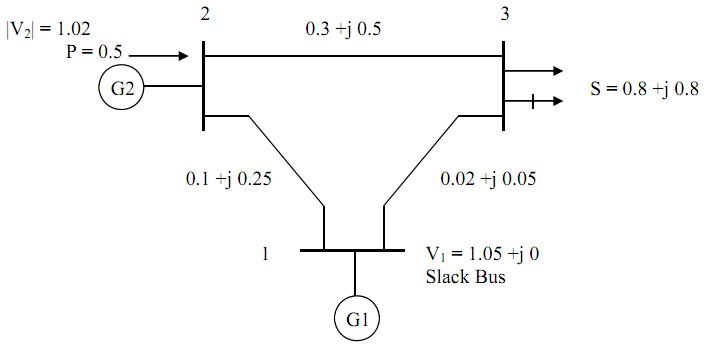

For the 3 bus system shown below all values are given in pu on a 100MVA base

(a) Use Matlab functions lf gauss and lf Newton to find power flow solution for the system, accurate to 0.0000001pu. Compare the 2 methods.

(b) Draw the power flow diagram showing voltages and powers for all busses and power losses in all lines;
