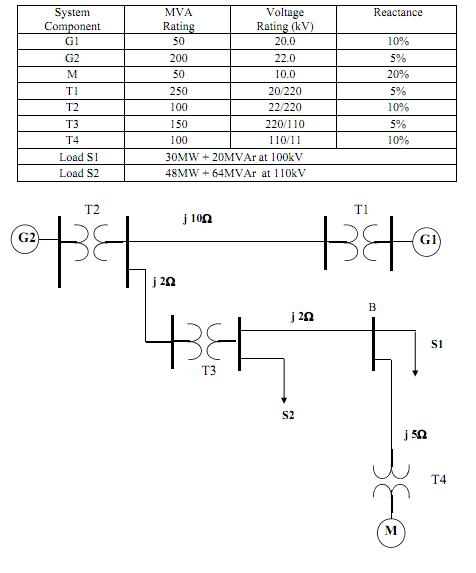

The one line diagram of a simple power system is shown below. The data of the system are given in the table below.
(a) Draw the impedance diagram of the system and mark all impedances in pu on the diagram. Choose a base of 100 MVA and 20kV at generator G1.
(b) Calculate the pu voltage and line to line voltage of bus B if the motor draws its rated power at its rated voltage and power factor 0.8 lagging.
SYSTEM DATA
Inductive Logic Programming : Now here having studied a non-symbolic approach to machine learning on Artificial Neural Networks then we return to a logical approach, namely In
Explain the Third Group of 32 ASCII Character? The third group of 32 ASCII characters is set aside for the upper case alphabetic characters. The ASCII codes for the characters
a. Given a timer with a terminal count and a clock frequency of 10 MHz measure the following: (i) Range & Resolution (ii) Terminal count values needed to measure 3ms interval
# NEED ASSIGNMENT ABOUT RECTIFIER CIRCUIT
DAD Double Add Instruction The contents of register R P are added to the contents of HL register pair and results of addition is stored in HL register pair. R P may b
Ask question (c) Reduce each of the given signal transmission situations to a source, coupling path(s), and receptor: (i) AM radio transmission to the human ear. (ii) TV transmis
Q A high-pass filter circuit is shown in Figure. Using a PSpice program and PROBE, obtain the Bode magnitude plot for the transfer function ¯H(f) = ¯V out / ¯V in for frequency ra
The maximum power transfer theorem states: 'A load will receive maximum power from a linear bilateral dc network when its total resistive value equal to the Thevenin's or Norto
Balanced Wye-Connected Load Let us consider a three-phase, four-wire 208-V supply system connected to a balanced wye connected load with an impedance of 10 20° , as shown in F
Determine the self inductance of the two coils: Two coils with a coefficient of coupling of 0.6 between them are connected in series so as to magnetize (i) in the same directi
