Consider the finite state machine whose state transition table is :

575_Draw the graph for finite state machine 1.png

Draw the graph for it.

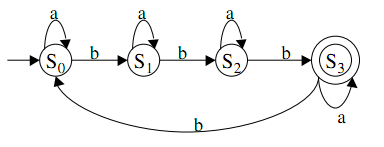

 Ans: The graph for the automata according to the transition table is drawn below. As no start state and no final state is specifies, by using the convention, first state S0 is displayed as start state and last state S3 is shown as final state.

2148_Draw the graph for finite state machine.png
