Draw a single stage amplifier circuit using JFET, Physics

Assignment Help:

Draw  a  single  stage  amplifier  circuit  using  JFET

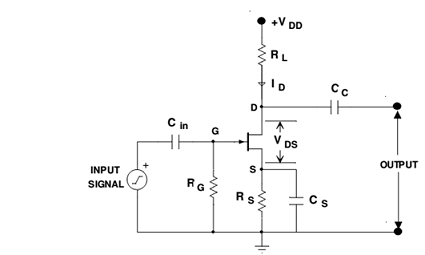

Circuit  of  a  Single  Stage  Common  Source  N-channel  JFET amplifier  using self-bias is shown in figure



546_single  stage  amplifier.png
