Direct Mapping:

In this particular technique, block j of the primary memory maps onto block j modulo 128 of the cache.

  • The primary memory blocks 0,128,256,...is loaded in the cache, it is stored in cache block 0.
  • Blocks 1, 129,257,...are stored in cache block 1.

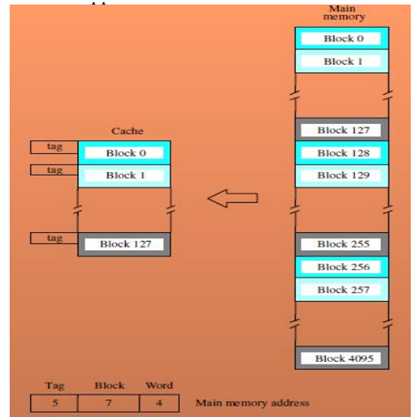

 Direct Mapped Cache:



210_Direct Mapped Cache.png
