Diffuser action:

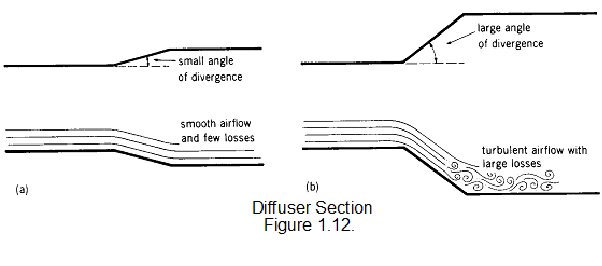

The flare, which increases the area of the duct, is known as a diffuser and its shape determines the rate of compression and the amount by which the air is compressed. For best results, the airflow must remain smooth and, because of this, a most important design feature is the angle of divergence. When air is compressed by this process it is called subsonic diffusion and it is a principle that is used extensively in jet engine design.

167_Diffuser action.png
