Difference amplifier:

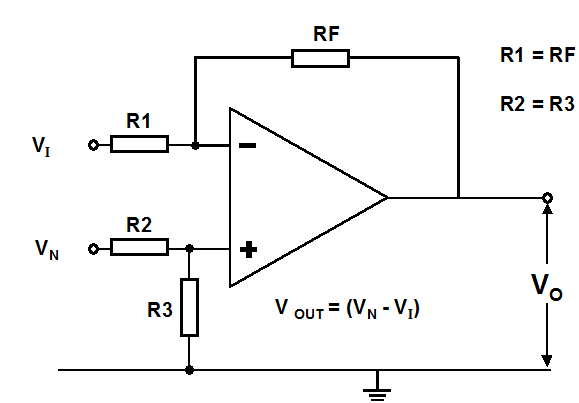

Figure shows how two inputs can be subtracted. This circuit differs from previous types with negative feedback in that the non-inverting terminal is not at earth. As before, however, the negative feedback drives the output to a value, which reduces the input difference voltage to zero.

841_difference amplifier.png
