Determine the vertical reaction, Physics

Assignment Help:

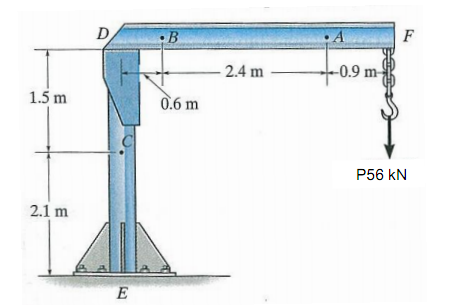

The boom DF and the column DE have a uniform weight of P55 N/m and the chain and load at F is P56 kN.  Determine the Shear Force in kN rounded to 1 DP and the Bending Moment in kN.m rounded to 1 DP at point C in the beam. Then determine the vertical reaction rounded to 1 DP at E when vertically up would be positive.

480_Determine the Vertical Reaction.png

The Shear Force in kN at C rounded to 1DP is

 ANS:

The Bending Moment in kN.m at C rounded to 1DP is

 ANS:

The vertical reaction in kN at E rounded to 1DP is

ANS:
