Determine the value of voltage using offset diode model, Electrical Engineering

Assignment Help:

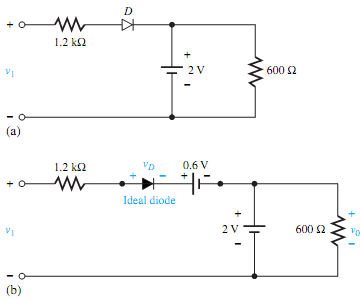

Use the offset diode model with a threshold voltage of 0.6 V to determine the value of v1 for which the diode D will first conduct in the circuit of Figure(a).

549_Determine the value of voltage using offset diode model.png
