Determine the terminal velocity, Physics

Assignment Help:

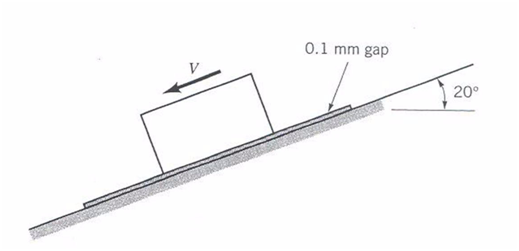

A 10 kg block slides down a smooth inclined surface as shown in Figure 1. Determine the terminal velocity of the block if the 0.1 mm gap between the block and the surface contains SAE30 oil at 20°C. Assume the velocity distribution in the gap is linear, and the area of the block in contact with the oil is 0.2 m2.

868_Determine the Terminal Velocity.png
