Determine the sweep angles and coordinates, Civil Engineering

Assignment Help:

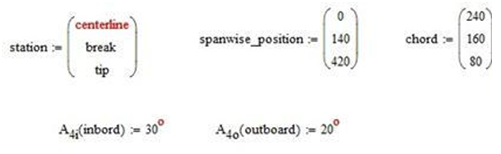

897_control line break.png

This is more likely in to Aerospace engineering.. So if there's anyone whose doing his/her major or have any skills regarding that field please help me with this problem. :)

a) Determine the (x,y) coordinates of each station along the quarter-chord line
b) Determine the (x,y) coordinates of each station along the leading edge
c) Determine the (x,y) coordinates of each station along the trailing edge
d) Determine the sweep angles of the leading edge
e) Determine the sweep angles of the triling edge

2) For Atlas V 400 LPF determine (a. b, zc) so that the conical blends smoothly in to an elliptical nose that closes at (zn,0)
