Determine the relationship between alpha and beta, Physics

Assignment Help:

Derive the relation

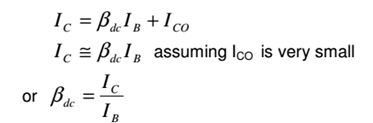

Relationship  between  α and  β: Beta  factor  (β)  is  the  current  gain  factor  of  a common emitter circuit is defined as ratio of change in collector current (IC) to the change in base current (IB) i.e.,


And alpha factor (α) is also called current amplification factor and is defined as ratio of change in collector current (IC) to the change in emitter current (IE) i.e.
