Determine the peak frequency deviation, Electrical Engineering

Assignment Help:

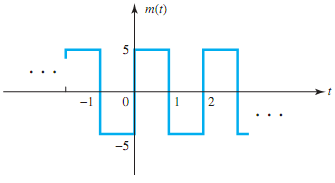

If an FM signal is given by sFM(t) = 100 cos [2πfct +100 m(τ ) dτ ] and m(t) is given in figure, sketch the instantaneous frequency as a function of time and determine the peak frequency deviation.

149_Determine the peak frequency deviation.png
