Determine the magnitude of the horizontal force, Physics

Assignment Help:

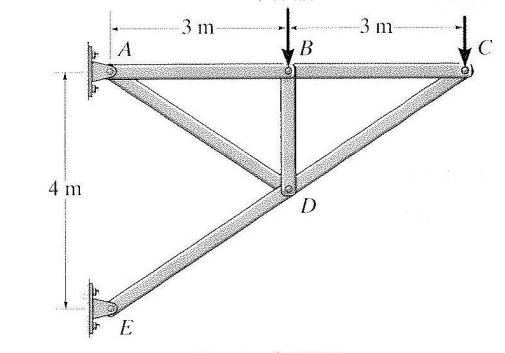

The truss shown below supports is fastened to the supports at A & E.  Each member of the truss is made of the same uniform material that has a weight in kiloNewtons per metre (kN/m) as given in P15.  That means that each metre each of truss member weighs the value given in P15.  The external vertical loads at B and C in kN, are P16 and P17 respectively.  Assume that half the weight of each member acts at the pin joint at each end of the member.  Determine the magnitude of the horizontal force acting on the support A in kN rounded to 1 DP.

The magnitude of the horizontal force acting on the support A in kN rounded to 1 DP is

Ans:

906_Determine the Magnitude of the Horizontal Force.png


Related Discussions:- Determine the magnitude of the horizontal force

Laws of motion, A bob hanged to astrirg in a box .it is displaced to an agl...

A bob hanged to astrirg in a box .it is displaced to an agle of 45 .then fid the acceleration of the box at this moment. Ans) gsin45,that is 10/1.4142.as it would have only tangen

Explain real ball bearings, Real ball bearings Study real ball bearings...

Real ball bearings Study real ball bearings and roller bearings. Make a list of devices that having ball bearings or roller bearings.

In what direction does benito pull if the game is tied, Five people are pla...

Five people are playing tug-of-war. Anders and Alyson pull to the right with 45 N and 35 N, respectively. Calid and Marisol pull to the left with 53 N and 38 N, respectively.

Lyman series, Lyman series: The series which define the emission spect...

Lyman series: The series which define the emission spectrum of hydrogen while electrons are jumping to the ground state. All lines are in the ultraviolet.

The velocity of a body to be constant during of its motion, The velocity of...

The velocity of a body was noted to be constant during five minutes of its motion. What was acceleration during this interval its? As velocity of body remains same during given

Write the equation of an equipotential line, The equation of an equipotenti...

The equation of an equipotential line in an electric field is y=2x then the electric field strength vector at (1,2) may be?

Compute the area moment of inertia, Use the numerical integration scheme di...

Use the numerical integration scheme discussed in class to compute the area moment of inertia of the circular section with a hole as shown below.  For mapping, use 4-node element

What do you mean by dispersion of light, What do you mean by dispersion of ...

What do you mean by dispersion of light? What is deviation given by a thin prism of angle 80 and refractive index is 1.5? For what angle of incidence, Snell's law is not working

J.j. thomson''s method to verify specific charge of electron, It's working ...

It's working is based on the detail that if a beam of electron is subjected to the crossed electric field   and magnetic field , it experiences a force because of each field. In ca

Internal energy, mayer''s relationship connecting Cp and Cv

mayer''s relationship connecting Cp and Cv
