Q. Determine the function of time for the clock?

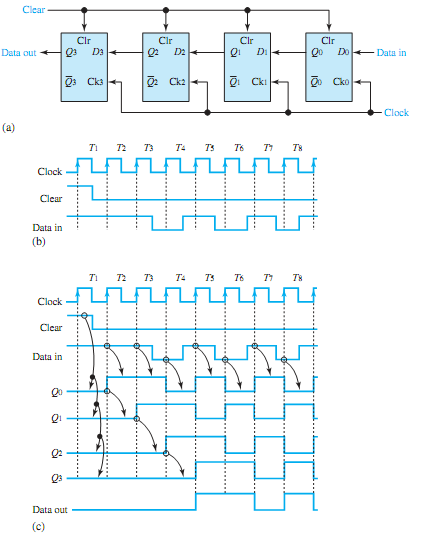

Given the block diagram for a 4-bit shift-left register shown in Figure (a), draw the output (Q0, Q1, Q2, Q3, and data out) as a function of time for the clock, clear, and data-in signals given in Figure.

2304_4-bit shift-left register.png
