Determine the Elements of the VDAFS version 2.0

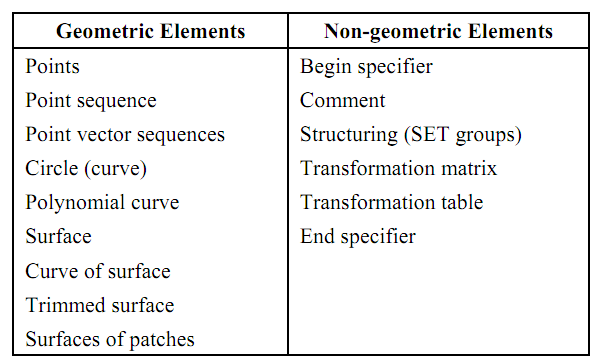

Elements of the VDAFS version 2.0 are shown in Table. Curves and surfaces are described with the help of points, set of points and set of vectors
