Determine the bending moment, Physics

Assignment Help:

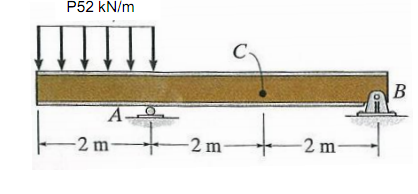

Determine the Shear Force in kN rounded to 1 DP and Bending Moment in kN.m rounded to 1 DP at point C in the beam when the UDL on the beam is P52 kN/m (as for the previous question)

The Shear Force in kN at C rounded to 1DP is

ANS

The Bending Moment in kN.m at C rounded to 1DP is

ANS

541_Determine the Bending Moment.png
