Determine the axial and shear force, Physics

Assignment Help:

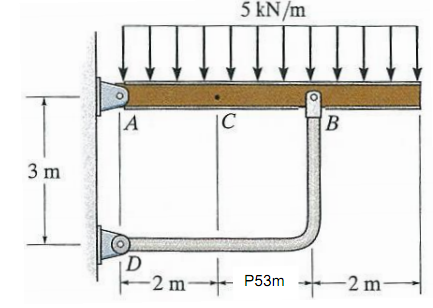

Determine the Shear Force in kN rounded to 1 DP and Bending Moment in kN.m rounded to 1 DP at point C in the beam when the distance CB is P53 m. Then determine the axial force rounded to 1 DP at C when tension is considered positive, compression considered negative.

The Shear Force in kN at C rounded to 1DP is

ANS:

The Bending Moment in kN.m at C rounded to 1DP is

 ANS

The axial force in kN at C rounded to 1DP is

 ANS
