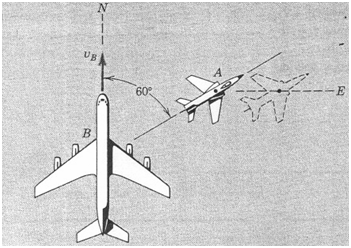

As shown in the figure, the jet transport B is flying north with a velocity vB = 600 km/h when a smaller aircraft A passes underneath the transport headed in the 60 degree direction shown. To passengers in B, however, A appears to be flying sideways and moving east. Determine the actual absolute velocity of A and the velocity of A appears to have relative to B.

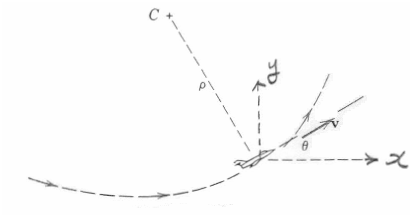

A jet aircraft pulls up into a vertical curve as shown in the figure. As it passes the position where Θ=30o, its speed is 1000 km/h and is decreasing at the rate of 15 km/h per second. If the radius of curvature ρ of the flight path is 1.5 km at this point, calculate the corresponding horizontal and vertical components, Ÿ and ? , of the acceleration of the aircraft.
Limitations of resistance welding 1). Pressure - tight joints are achieved only with flash butt welding. Resistance welding is not recommended for high pressure joints a
Relation between intensity bending moment and shear force: What is the relation between load intensity bending moment and shear force Consider the beam subjected to any t
Problem - Newton's Second Law in 1D Newton's Second Law of Motion says that the vector sum of the forces acting on an object equals the object's mass times its acceleration. Ma
The Mechanical Design Engineer/Specialist shall be responsible for mechanical design calculations that are required to ensure that the end product complies with all applicable code
Ideal Speed Circuit ( 36 to 40 kmph ) : Motorcycle is brought into this condition by raising the throttle valve and an incorporated jet needle. The air enters through the main pa
A motor cycle with its rider, weight 250kg, the centre of gravity of the machine and rider combined being 60cm above the ground level when the machine is standing upright. Each roa
Calculate stress intensity factor: For the plate in Figure (a) W = 25 mm, 2a = 10 mm, plate thickness, t = 2 mm, Load P = 1000 N. Calculate stress intensity factor if length o
Once vendor drawings are received and piping isometric drawings are prepared, the Mechanical engineer will provide a final stress package to the stress engineer per The stress a
Orthographic Projections: As you learned previously about the theory of projection of points, planes and lines, the next significant is the projection of solids that have thre
