Determine tension in horizontal rope:

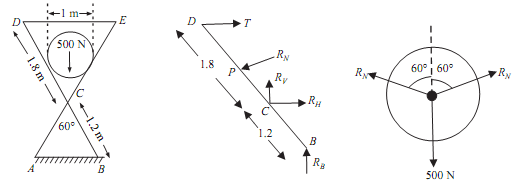

Q:  A 500N cylinder, 1 m in diameter is loaded between cross pieces AE and BD that make an angle of 60º with each other and are pinned at point C. Determine tension in horizontal rope DE assuming that the cross pieces rest on the smooth floor.

Sol.: Consider the equilibrium of the entire system.

C is the pin joint, make free body diagram of ball and rod separately.

2RNcos60° = 500                                                                                                                                 ...(i)

RN = 500KN

RA  + RB = 500N                                                                                                                             ...(ii)

Because of symmetry RA  = RB  = 250N

CP = 0.5 cot30° = 0.866m



224_Determine tension in horizontal rope.png



By taking moment about C,

T × 1.8 cos30° - RN  × CP - RB  × 1.2 sin30° = 0

T × 1.8 cos300 = RN  × CP + RB  × 1.2 sin30°

Putting value of CP, RN, and RB

T = 374N                                                                      .......ANS
