Determine minimum von mises stress, Mechanical Engineering

Assignment Help:

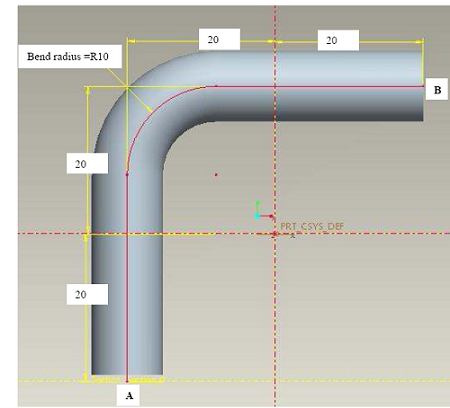

In this assignment you will apply what you have learned in previous training. Consider the part in figure, which constructed from a solid tube. The bracket is supported at surface A as figure. For your loading, P is applied at surface B as figure. The part is made of aluminum grade 2014 (al2014) (all dimensions are in SI, mm). The diameter of the solid tube is 5 mm.
