Describe 74LS139 memory decoder.

The 74LS139 is a dual 2-to-4 line decoder. This contains two separate 2-to-4 line decoders - all with its address, output and enable connections.

2243_74LS139 memory decoder.png

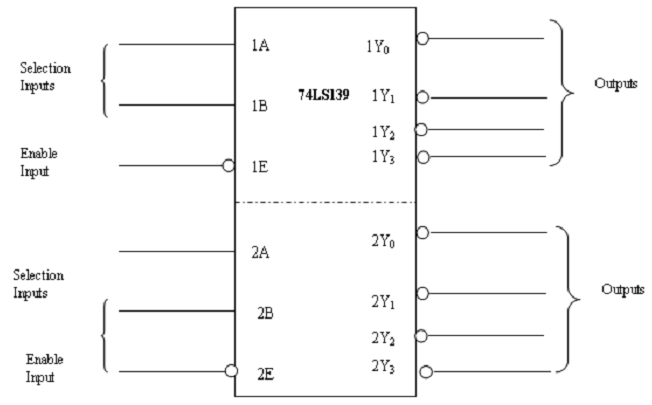

The Pin-out of the 74LS139
