Demorgan''s first theorem, Computer Engineering

Assignment Help:

DeMorgan's first theorem shows the equivalence of which logic gate ?

Ans. DeMorgan's first theorem depicts the equivalence of NOR gate and Bubbled AND gate.

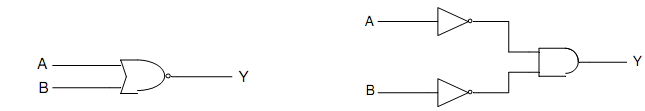

For De Morgan's First Theorem, the logig diagrams are shown in below figure.

1427_DeMorgans first theorem 1.png

For De Morgan's First Theorem, logic Diagrams
