Conversion of decimal number 10.625 into binary number ?
Ans. There is integer part is 10 and fractional part is 0.625. Firstly convert the decimal number 10in its equal binary number that is, divide 10 with 2 until the quotient becomes 0 shown in table.
Quotient
Remainder
10
2
5
0
1

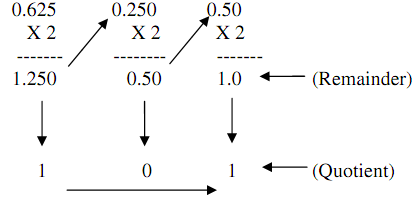

Therefore, the integer part 10 is equivalent to binary number 1010. After that convert the decimal fractional part 0.625 in its binary form that is, multiply 0.625 with 2 until the remainder becomes 0.
Therefore, the decimal fractional part 0.625 is equivalent to binary number 0.101. Thus the decimal number 10.625 is equivalent to binary number 1010.101.
