Calculate the maximum shear stress, Mechanical Engineering

Assignment Help:

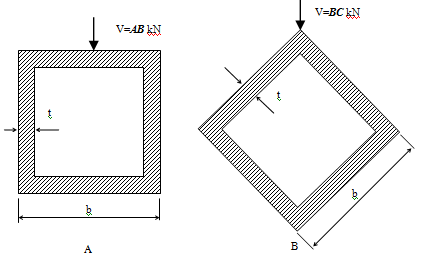

The square cross sections A and B are shown in Fig Q1, the dimensions b = 80 mm, thickness t = 10 mm. A shear force V is applied at the cross section, calculate the maximum shear stress in the cross sections.
