Q. Calculate Register Transfer Time?

A clock isn't included explicitly in any statements discussed above. But it is presumed that all transfers take place during clock edge transition instantly following the period when control function is 1. All statements suggest ahardware construction for implementing the micro-operation statement as shown below:

Implementation of controlled data-transfer from R2 to R1 only when T = 1

       T:     R1 ← R2

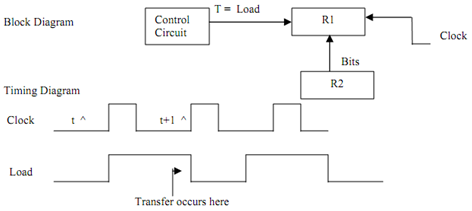

Figure: The Register Transfer Time
