Basic specifications of a ujt, Electrical Engineering

Assignment Help:

The very basic specifications of a UJT are:

Vbb(max) - The maximum interbase voltage that can be applied to the UJT

(b) Rbb-the interbase resistance of the UJT

(c) n - The intrinsic standoff ratio which defines Vp.

(d) Ip - The peakpoint emitter current

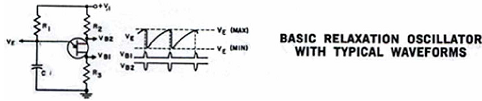

1428_Basic specifications of a UJT.png
