Aerodynamics-supercritical aerofoils, Other Engineering

Assignment Help:

Design Features of Supercritical Aerofoil

• Blunt nose-

rapid p pressure reduction around leading edge

• Flat top-

Reduce the flow acceleration on upper surface toreduce shock strength

• Cusped trailing edge-

Increased loading over rear of aerofoil to recoversome lift

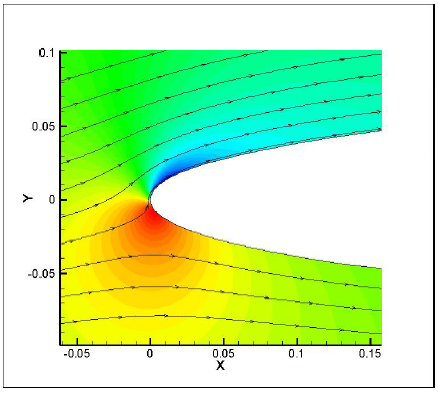

Velocity vector

1146_velocity vector.png

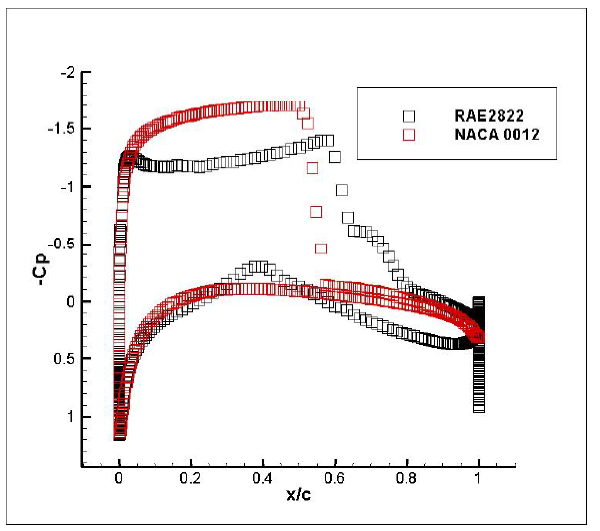

Speed of NACA

1258_velocity vector1.png
