3 variable k-maps, Computer Engineering

Assignment Help:

3-variable K-maps have 8 squares which arenormally arranged in 4 columns and 2 rows.Columns are labeled with 2 variables.

323_3 variable K maps.png

The columns are arranged so that either A or B changes state for a single horizontal movement but not both.

1700_3 variable K maps1.png

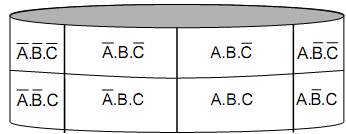

A single horizontal movement between the leftmost and rightmost columns results in only 1 variable changing in the associated minterms.

1128_3 variable K maps2.png

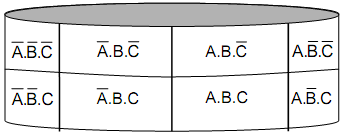

The K-map could be drawn on a ring with the left hand column and right hand column adjacent to each other.

1844_3 variable K maps3.png
