calculate the current, Electrical Engineering

Assignment Help:

Find the Thévenin equivalent for the attached circuit and use this to calculate the current in the load.

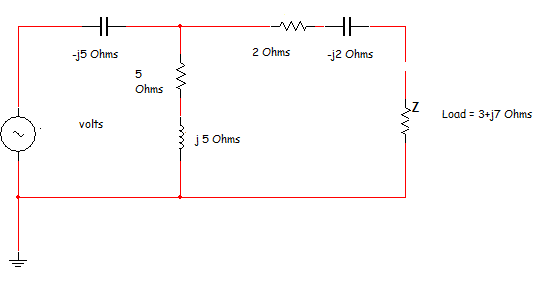

408_basic circuit.png



Circuit information:-

  • Load consists of 3 + j7 ohms
  • The voltage source is 12 <0o volts

ALL working out must be shown.
