What is the range of error voltage as position varies

Assignment Help Electrical Engineering

Reference no: EM131393037

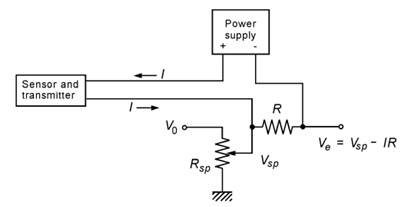

A sensor converts position from 0 to 2.0 m into a 4- to 20-m A current. An error detector such as that shown in Figure is used with R = 100 Ω,V₀ = 5.0 V R_sp = 1 kΩ pot.

a. If the set point is 0.85 m, what is V_sp?

b. If V_sp = 1.5 V, what is the range of error voltage as position varies from 0 to 2.0 m?

1060_Figure 1.jpg
