Use a fin model to determine the interface temperature

Assignment Help Electrical Engineering

Reference no: EM131284947

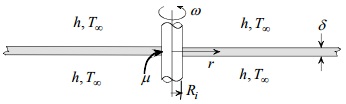

A very large disk of thickness G is mounted on a shaft of radius The shaft rotates with angular velocity . Ri Z. The pressure at the interface between the shaft and the disk is P and the coefficient of friction is P. The disk exchanges heat with the ambient by convection.

The heat transfer coefficient is h and the ambient temperature is Neglecting heat transfer to the shaft at the interface, use a fin model to determine the interface temperature.

908_Figure 02.jpg

Reference no: EM131284947
