State values of the maximum positive and negative moments

Assignment Help Mechanical Engineering

Reference no: EM131360568

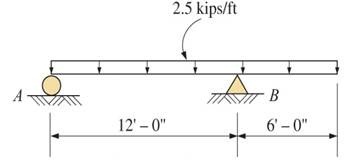

For the beams shown, draw complete shear and moment diagrams and state the values of the maximum positive and negative moments.

1270_Fig 02.jpg
