Sketch the desired variation of the charge pump current

Assignment Help Electrical Engineering

Reference no: EM131493768

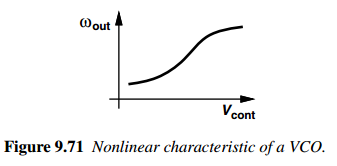

Question: A PLL incorporates a VCO having the characteristic shown in Fig. It is possible to compensate for the VCO nonlinearity by varying the charge pump current as a function of the control voltage so that the loop dynamics remain relatively constant. Sketch the desired variation of the charge pump current.


Reference no: EM131493768
