Rc circuits: capacitor is completely discharged

Assignment Help Electrical Engineering
Reference no: EM131287

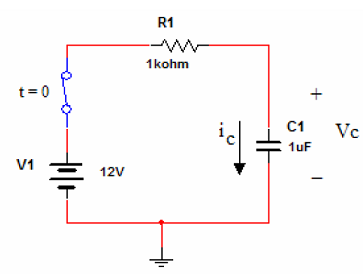

RC CIRCUITS:




1) Hand calculate the expression for the voltage and current of the capacitor and plot these equations by using MATLAB.

2) Plot the capacitor voltage and current for R=100Ohm and C=1μF, R=1k and C=800mF and comment about the differences you see in the graphs.

3) Calculate the time constants of each circuit and point out this time constants at your voltage graphs.

4) Hand calculate the expression for the voltage and current of the resistor and plot these equations by using MATLAB.

5) Assume the output is taken from the capacitor in this RC system with R=100Ohm and C=1μF. Plot the step and impulse response of the system by using the LSIM (you can use TF function before LSIM to calculate your system coefficients) function of MATLAB.

6) Assume the output is taken from the capacitor in this RC system with R=100Ohm and C=1μF. This RC system is a first order low pass filter with a break frequency. Calculate the break frequency for this system.

7) Apply two ac signals (x1(t) and x2(t))to your system by using LSIM function of MATLAB. X1(t) is a sinusoidal signal with 500 Hz frequency and x2(t) is a sinusoidal signal with 100 Hz frequency. You will notice different effects of your RC system (low pass filter) to these signals. What is the reason for this difference.

Reference no: EM131287
