Perform a complete kinematic analysis

Assignment Help Mechanical Engineering

Reference no: EM131164772

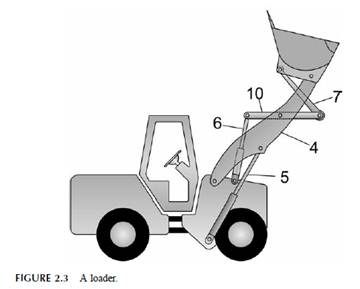

For the loader shown in Figure 2.3, assume that rods 5 and 6 move during the same time interval (synchronized motion), but their velocities may be different.

a. Find by trial and error such dimensions that the bucket rotates over the p/2 range from the lowest to the highest position.

b. Perform a complete kinematic analysis. Plot angular velocity and acceleration of the bucket when it moves from the lowest to the highest position.

c. Animate the motion

Reference no: EM131164772
