For series parallel network of given figure find current i

Assignment Help Electrical Engineering

Reference no: EM131203484

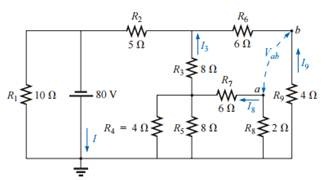

For the series-parallel network of given figure:

a. Find the current I.

b. Find the currents I₃ and I₉.

c. Find the current I₈.

d. Find the voltage V_ab.

Reference no: EM131203484
