Solution-Find equivalent resistance of series combination

Find equivalent resistance of series combination of resistor

Assignment Help Electrical Engineering

Reference no: EM13989931

1. Find the equivalent resistance of the series combination of resistors. Also find V_T, _V1 and V₂.

1463_The series combination of resistors.png

2. Find the equivalent resistance of the parallel combination of resistors. Also find I_T, I₁ and I₂.

2212_The parallel combination of resistors.png

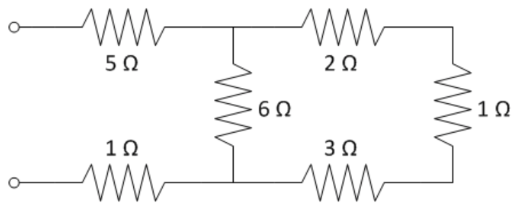

3. Find the total equivalent resistance of the network shown.

2047_Circuit Network.png

4. Calculate the value of the resistance in the diagram. Also calculate the power. Is the power being supplied or absorbed?

136_Circuit Network1.png
