Draw an equivalent linkage diagram

Assignment Help Mechanical Engineering

Reference no: EM131393009

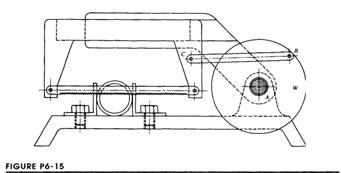

Figure P6-15 shows a power hacksaw which is an offset slider-crank mechanism. The crank is 75 mm, the connecting rod is 170 mm, and the offset is 45 mm. Draw an equivalent linkage diagram; then calculate and plot the velocity of the saw blade with respect to the piece being cut over one revolution of the crank at 50 rpm.

Reference no: EM131393009
