Determine whether the counter is self-starting

Assignment Help Electrical Engineering

Reference no: EM131359852

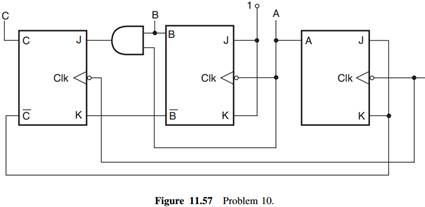

Refer to the three-bit counter arrangement of Fig. 11.57. Determine its count sequence and also determine whether the counter is self-starting. (A counter is self-starting if it automatically goes to one of the desired states with subsequent clock pulse in case it lands itself accidentally into any of the undesired states.)
000, 001, 010, 011, 100, 000, ........ ; not self starting
