Determine va and vb in terms of v1 and v2

Assignment Help Physics

Reference no: EM132389644

Question :

(a) Determine v_A and v_B in terms of v₁ and v₂.

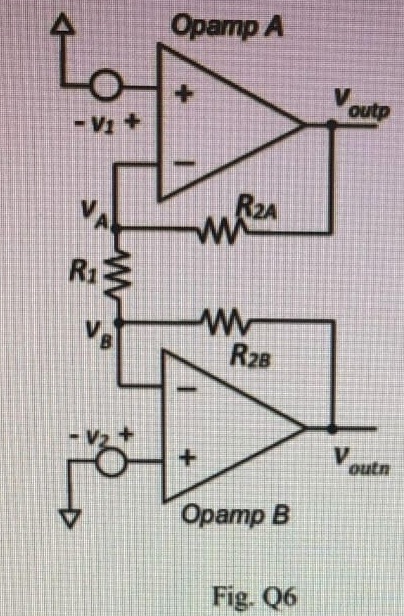

(b) Derive (v_outp-v_outn) in terms if (v₁-v₂) for the circuit shown in figure. You may assume R_1A= R_2B=R₂.

(c) If v₁= v_ic + (vid/2) and v2 = vic- (vid/2), derive (v_outp-v_outn) in terms of v_ic and v_id.

(d) What is (v_outp-v_outn) in terms if v_ic and v_id, if R_2A is 10% larger than R_2B, i.e. R_2A = 1.1 x R_2B?

(e) The circuit shown in figure functions similarly to an opamp circuit coverd in lectures. Which is this circuit?
