Determine the values of gt gp and ga

Assignment Help Physics

Reference no: EM131515402

Question: The S parameters of a transistor are

S₁₁ = 0.7!30° S₁₂ = 0

S₂₁ = 4!90° S₂₂ = 0.5

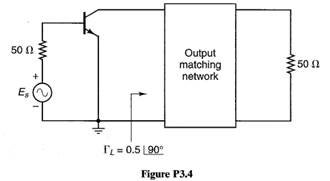

The transistor is used in the amplifier shown in Fig., where the output matching network produces Γ_L = 0.5!90°. Determine the values of G_T, G_p, and G_A.
