Determine the tension force on the beam

Assignment Help Physics

Reference no: EM132097072

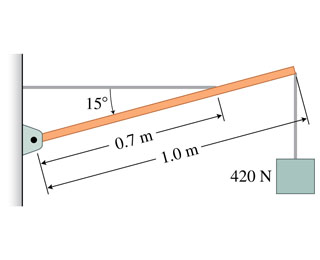

Question: Determine the tension force that the horizontal cable exerts on the beam in the figure below if the horizontal cable is moved down so that its right end attaches to the beam0.30 mfrom its top right end. The cable remains horizontal and the beam is tilted at 15°.
