Determine the quality factor of the circuit

Assignment Help Electrical Engineering

Reference no: EM131165348

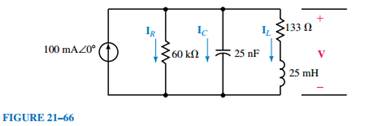

PSpice Use OrCAD PSpice to input the circuit of Figure 21-66. Use the Probe postprocessor to display the response of the capacitor voltage as a function of frequency. From the display, determine the maximum rms voltage, the resonant frequency, the half-power frequencies, and the bandwidth. Use the results to determine the quality factor of the circuit.

Reference no: EM131165348
