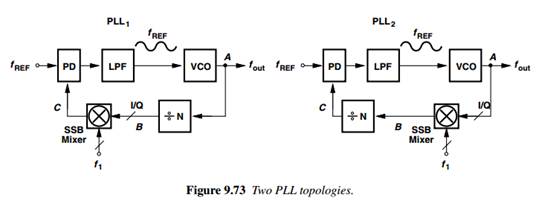

Question: Two PLL configurations are shown in Fig. Assume the SSB mixer adds its input frequencies. Also, assume f1 is a constant frequency provided externally and it is less than fREF. The control voltage experiences a small sinusoidal ripple with a frequency of fREF. Both PLLs are locked.
(a) Determine the output frequencies of the two PLLs.
(b) Determine the spectrum at point A due to the ripple.
(c) Now determine the spectrum at nodes B and C.
Thesignal x(t)=u(t-1)-u(t-3) is the input to an LTI systemwith the impulse response h(t)=u(t-5)-u(t-8)The system is initially atrest. (a)Compute the output y(t) of this system using convolution. Make asketch of y(t)
A 020-mm tapered hole (large end) with a 3-mm-wide slot on top is required for attaching the microphone to the holder. Lay out the holder and show the microphone in phantom lines.
A M-bit thermometer code for the number k consists of k 1's in the least significant bit positions and M-k 0's in the more significant bit positions. A binary-to-thermometer code converter has N inputs and 2^N-1 outputs.
How is a frame relay address field extended (based on the ANSI standard)? Explain how it works.
A Three phase thyristor converter, VLL=460V (rms) at 60 Hz, and Ls=5mH, the firing angle "a " is 30 degrees electrical, the converter is consuming 5Kw, the DC current is assumed to be constant.
Find the energy stored in each inductor of given problem.- Find the voltage V1 and the current through each inductor in the circuit of given figure.
The data sheet of a quad two-input AND gate (type 74S08) specifies the propagation delay and power supply parameters as VCC = 5.0 V (typical), ICCH (for all four gates) = 18 mA, ICCL (for all four gates) = 32 mA, tpLH= 4.5 ns and tpHL = 5.0 ns. De..
What is the nearest coherent frequency to 20 kHz when 512 samples are collected at a rate of 44 kHz? How many cycles are completed in one UTP?
Find the Norton equivalent circuit for the network external to the resistor R for each network of given figure.
Three single-phase, two-winding transformers, each reated 450 MVA, 20 kV/288.7 kV with leakage reactance Xeq=0.12 per unit, are connected to form a three-phase bank. The high voltage windings are connected in Y with solidly grounded neutral.
The doping concentrations in a silicon pn junction are Nd = 5 × 1015 cm^3 and Na = 1017 cm^3. The zero-bias junction capacitance is Cjo = 0.60 pF. An inductance of 1.50 mH is connected in parallel with the pn junction.
a single silicon photovoltaic cell is found to have an open-circuit voltage of 0.6 v and a short-circuit current of
