Question: Repeat given Example if RD1 and RD2 are replaced with ideal current sources and channel-length modulation is not neglected.

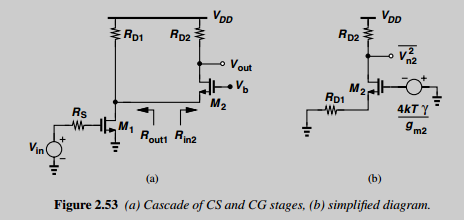

Example: Determine the noise figure of the circuit shown in Fig. Neglect transistor capacitances, flicker noise, channel-length modulation, and body effect.
