Design a signal conditioning scheme for the accelerometer

Assignment Help Electrical Engineering
Reference no: EM131392565

Design a signal-conditioning scheme for the accelerometer in given Problem using a bridge circuit. Plot the bridge offset voltage versus shock in g from 0 to 5000 gs.

Problem

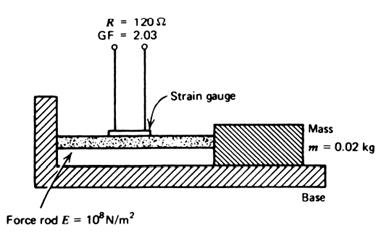

An accelerometer for shock is designed as shown in Figure. Find a relation between strain gauge resistance change and shock in g (i.e., the resistance change per g). The force rod cross-sectional area is

2.0 x 10-4.

1218_Figure 5.jpg

Reference no: EM131392565
