Control the output flow rate

Assignment Help Electrical Engineering
Reference no: EM131392302

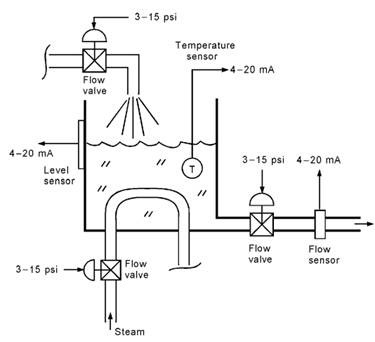

Figure shows a manufacturing process diagram. In this process, the following independent control requirements must be satisfied:

a. Control the level at Lsp.

b. Control the temperature at Tsp.

c. Control the output flow rate at Qsp. Complete the diagram showing the control loops by using the block diagram error-detector symbols and controller blocks. Include blocks for necessary signal converters.

720_Figure 4.jpg

Reference no: EM131392302
