Compute the horizontal displacement of joint

Assignment Help Mechanical Engineering

Reference no: EM131513568

Question: 1. Compute the slope at A and the horizontal and vertical components of deflection at point D in Figure P7.27.

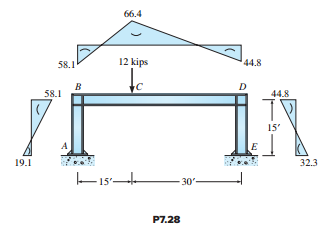

2. Compute the horizontal displacement of joint B in Figure P7.28. The moment diagram produced by the 12-kip load is given. The base of the columns at points A and E may be treated as fixed supports.


Reference no: EM131513568

Questions Cloud

Compute the horizontal and vertical deflections : Compute the horizontal deflection at D and vertical deflection at B in Figure P7.21. The elastomeric pad at C acts as a roller.

What is the minimum required value of the moment of inertia : Compute the horizontal and vertical deflections at C of the frame in Figure P7.23. EI is constant.

Determine the required moment of inertia for the column : Compute the vertical displacement of the hinge at C in Figure P7.25. EI is constant.

Describe the appearance of your six choices to your ceo : Identify three (3) examples of 19th century Impressionist painting or sculpture and three (3) Post-Impressionist works.

Compute the horizontal displacement of joint : Compute the slope at A and the horizontal and vertical components of deflection at point D in Figure P7.27.

Compute the rotation and the vertical deflection : Compute the rotation at B and the vertical deflection at D. Given: E = 200 GPa, IAC = 400 = 106 mm4, and IBD = 800 × 106 mm4.

Compare and contrast five similar products in areas of price : Choose one competitive distribution company and compare and contrast five similar products in the areas of price, quality, and value.

Determine the maximum vertical deflection : Compute the deflection at the tip of the cantilever beam in Figure P7.31. E is constant.
