Calculate the principal stresses

Assignment Help Mechanical Engineering

Reference no: EM131382146

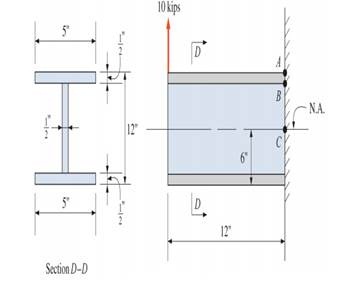

A short-span cantilever built-up beam has the dimensions shown. Calculate the principal stresses, the inclination of the principal planes, and the maximum shear stress at points A, B, and C. Neglect the weight of the beam and the effect of stress concentrations. Use the analytical approach.
